Leak Tester Fittings

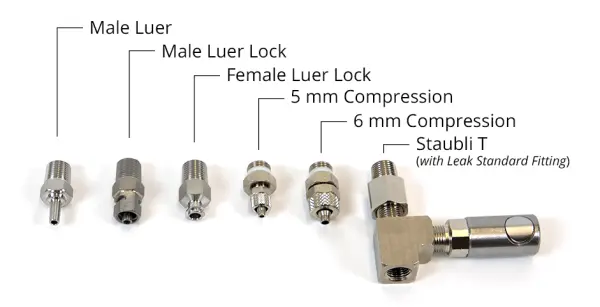

The port on the Zaxis PD is a female 1/4 NPT. The port on the iKit, Issac HD, and Zaxis 7i is a female 1/8 NPT. Any compatible fitting may be used. The most common leak tester fittings are the Male Luer, Male Luer Lock, Female Luer Lock, 5 mm compression, 6 mm compression and the Staubli T. Please contact a sales representative with any fitting compatibility questions.
| Male Luer | Male Luer taper fitting with slip tip (no threads) |
| Male Luer Lock | One-piece male Luer taper fitting with threaded sleeve |
| Compression Fitting | Available for 5mm or 6mm tubing, other sizes available upon request |
| Staubli T | Allows for incorporation of a leak standards in circut |
